FAQ - RFID card technology support in different TBS device types

Question

What RFID card technologies are supported in different TBS device types?

Answer

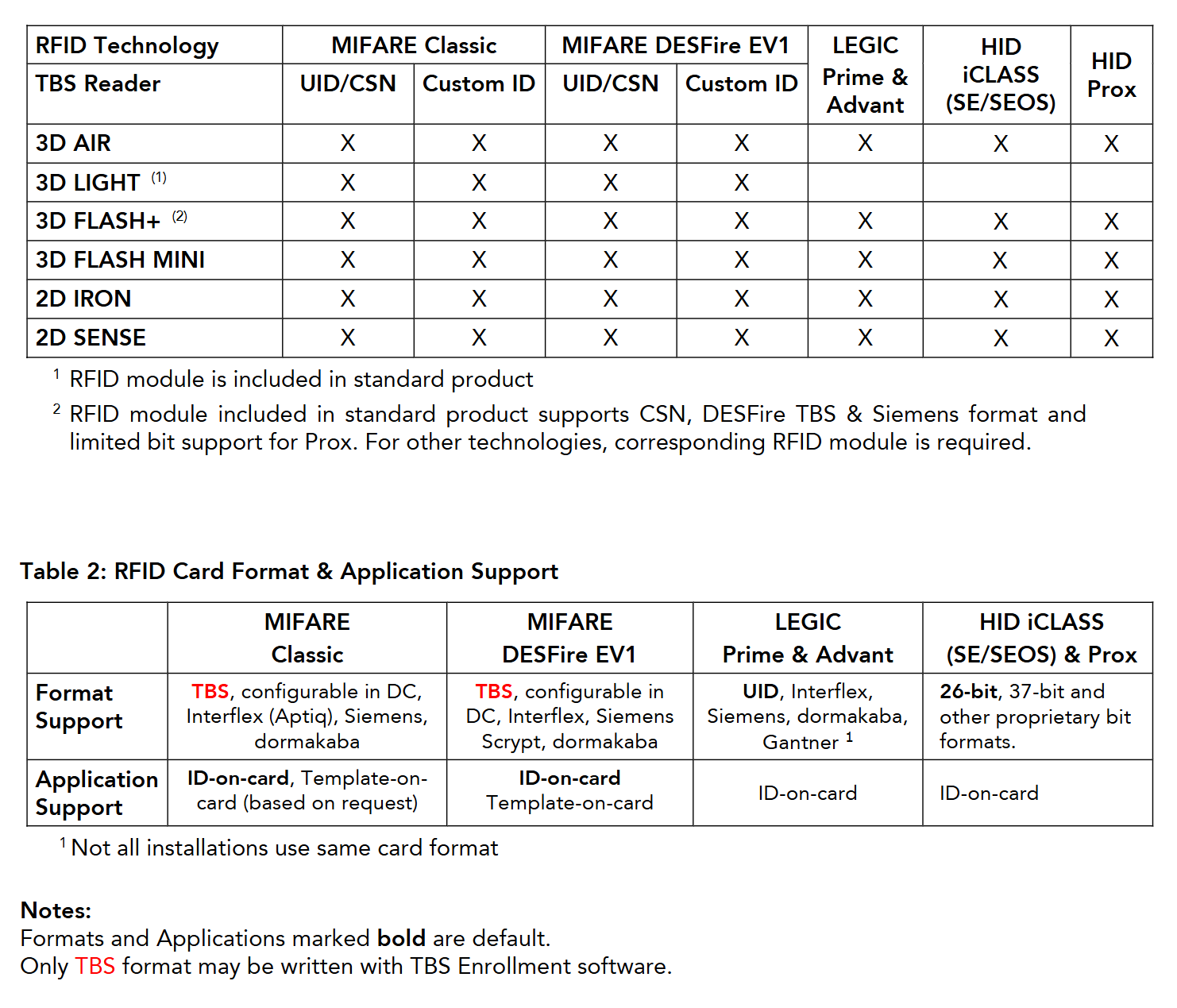

The following table lists the RFID technologies supported in different TBS device types:

Beginning with 2.06.x FW, the 3D LIGHT supports RFID only in 'EF-45N' models and in previous models with serial number starting with 'HH' or newer.
